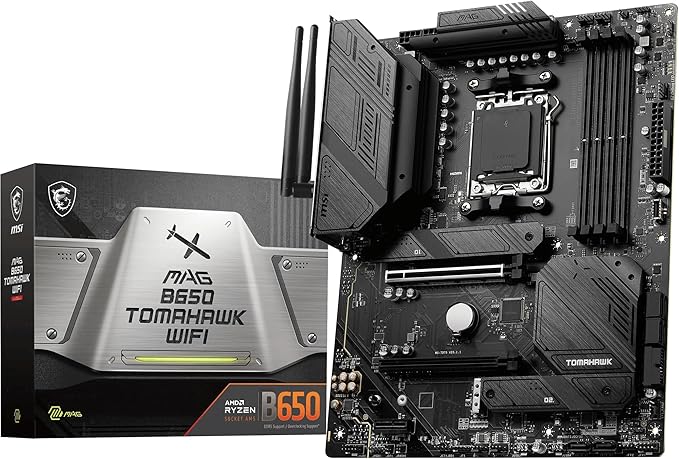

MSI MAG B650 TOMAHAWK WIFI Motherboard, ATX - Supports AMD Ryzen 9000 Series Processors, AM5 - 14 Duet Rail 80A VRM, DDR5 Memory Boost 6400+MHz/OC, 2 x PCIe 4.0 x16, 3 x M.2 Gen4, Wi-Fi 6E

Image 1
  • Image 1
RRP:
£125.77
Your Price:
£95.77 (You save £30.00)
SKU:
‎7D75-001R
Shipping:
Free Shipping
Quantity:

Product Description

Product information

Technical Details

Brand ‎MSI
Product Dimensions ‎24.4 x 5 x 30.5 cm; 1 kg
Batteries ‎1 Lithium Ion batteries required. (included)
Item model number ‎7D75-001R
Manufacturer ‎MSI COMPUTER
Series ‎MAG B650 TOMAHAWK WIFI
Colour ‎MAG B650 TOMAHAWK WIFI
Form Factor ‎ATX
Processor Type ‎Ryzen 7
Processor Socket ‎Socket AM5
Memory Technology ‎DDR5
Computer Memory Type ‎DIMM
Maximum Memory Supported ‎64 GB
Memory Clock Speed ‎6600 MHz
Graphics Card Interface ‎PCI-Express x16
Connectivity Type ‎Wi-Fi
Wireless Type ‎Bluetooth
Number of USB 2.0 Ports ‎6
Number of HDMI Ports ‎1
Number of Ethernet Ports ‎1
Voltage ‎1 Volts
Are Batteries Included ‎Yes
Lithium Battery Energy Content ‎225 Milliamp Hours (mAh)
Lithium Battery Packaging ‎Batteries contained in equipment
Lithium Battery Weight ‎0.19 g
Number Of Lithium Ion Cells ‎1
Number of Lithium Metal Cells ‎1
Item Weight ‎1 kg
Guaranteed software updates until ‎unknown

Additional Information

ASIN B0BDS873GF

About this item

  • POWERFUL VRM, Ryzen 7000 READY - The MAG B650 TOMAHAWK WIFI employs an 14+2 phase Duet Rail VRM with 80A Power Stage for the AMD B650 chipset (AM5, Ryzen 7000 ready); Core Boost architecture supports multi-core overclocking
  • INTEGRATED COOLING - VRM cooling features 7W/mK MOSFET thermal pads and an extended heatsink; Additional cooling includes chipset heatsink, M.2 Shield Frozr, a dedicated pump-fan cooling header & 6-layer PCB with 2 oz. thickened copper
  • DDR5 MEMORY, DUAL PCI-E 4.0 x16 SLOTS - 4 x DDR5 DIMM SMT slots enable extreme memory overclocking speeds (1DPC 1R, 6400+ MHz); 2 x PCIe 4.0 x16 slots (64GB/s) support graphics cards
  • TRIPLE M.2 CONNECTORS - Premium storage options consist of 3 x M.2 Gen4 x4 64Gbps slots (2 with Shield Frozr) to prevent SSD thermal throttling
  • WI-FI 6E CONNECTIVITY - Network hardware includes Wi-Fi 6E with Bluetooth 5.2 & 2.5Gbps LAN; Rear ports include USB 3.2 Gen 2x2 Type-C (20Gbps), HDMI 2.1 & DisplayPort 1.4, and 7.1 USB High Performance Audio with Audio Boost 5 (supports S/PDIF output)
Brand MSI
CPU socket Socket AM5
Compatible devices Personal Computer
RAM memory technology DDR5
Compatible processors AMD Socket AM5 Processors
Chipset type AMD B650
Memory clock speed 6600 MHz
Platform Windows 11
Model name MAG B650 TOMAHAWK WIFI
CPU model Ryzen 7
