Product Description

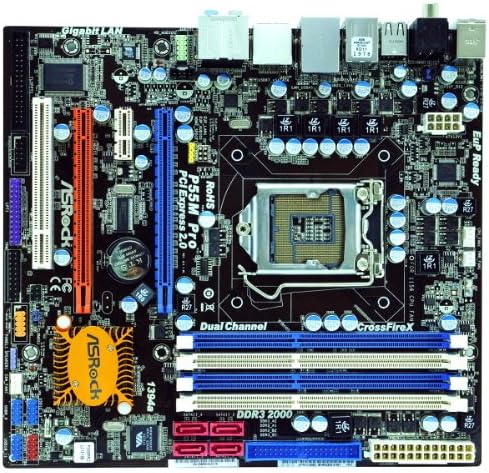

Specifications: Mfr Part Number: P55M PRO, CPU: Socket 1156 Support Intel Core i7 & Core i5 Processor; Supports Intel Turbo Boost Technology; Feature with V4 + 1 Power Phase Design, Chipset: Intel P55, Memory: 4x 240pin DDR3-2400+(OC)/2133(OC)/1866(OC)/1600/1333/1066 DIMMs, non-ECC, un-buffered, Dual Channel, Upto 16GB, Slots: 2x PCI-Express x16 Slots (Support ATI CrossFireX/ Quad CrossFireX Technology; Support PCI-Express 2.0); 1 x PCI-Express 2.0 x1 slot; 1x PCI Slots, IDE/SATA: 1x ATA-133 Channel; 4x SATA2 Ports, Suppport RAID 0, 1, 5, 10; 2x eSATA2 Port, Audio: VIA VT1708S 7.1-Channel Windows Vista Premium Level HD Audio CODEC, LAN: Realtek RTL8111DL PCI-Express Gigabit Ethernet Controller, Ports: 14x USB 2.0 Ports (6 rear, 6 by headers, 2 by Powered eSATA2/USB Connector); 2x IEEE 1394 Ports (1 rear, 1 by headers); 2x PS/2 Ports; 1x RJ45 LAN Port; 1x Coaxial SPDIF Out; 1x Optical SPDIF Out; Audio I/O Jacks, Power Connector: 1x 24pin Main Power, 1x 8pin CPU Power

Box Contains

• ASRock 1156 P55M Pro Motherboard

• Users Manual

• 1 x IDE Lead

• 1 x Floppy Lead

• 2 x S-ATA Data Leads

• 1 x 1-port S-ATA Power Lead

• Backplate

• Driver CD
