| Brand | MSI |
|---|---|
| Product Dimensions | 30.5 x 24.4 x 5 cm; 1.2 kg |
| Batteries | 1 Lithium Ion batteries required. (included) |
| Item model number | MSICMPZ69EDW1 |
| Manufacturer | MSI |
| Series | MPG Z690 EDGE WIFI |
| Colour | Black |
| Form Factor | M.2 |
| Processor Type | Intel Core i7 |
| Processor Socket | LGA 1700 |
| Memory Technology | DDR |
| Maximum Memory Supported | 128 GB |
| Memory Clock Speed | 6400 MHz |
| Hard Disk Description | Solid State Hard Drive |
| Hard Drive Interface | USB 3.2 |
| Graphics Card Interface | PCI Express |
| Connectivity Type | Wi-Fi |
| Wireless Type | 802.11a/b/g/n/ac, Bluetooth |
| Number of USB 2.0 Ports | 2 |
| Number of HDMI Ports | 1 |
| Number of Ethernet Ports | 2 |
| Are Batteries Included | Yes |
| Lithium Battery Energy Content | 170 Milliamp Hours (mAh) |
| Lithium Battery Packaging | Batteries contained in equipment |
| Lithium Battery Weight | 2.9 g |
| Number Of Lithium Ion Cells | 1 |
| Number of Lithium Metal Cells | 1 |
| Item Weight | 1.2 kg |
| Guaranteed software updates until | unknown |
Loading... Please wait...Categories
New Products
-
£3,399.00
-
£2,899.00
-
£2,899.00
-
£2,899.00
-
£799.99
Our Newsletter
- Home
- MSI Motherboards UK
- MSI MPG Z690 EDGE WIFI Motherboard ATX - Supports Intel 12th Gen Core Processors, LGA 1700 - Mystic Light, Memory Boost (DDR5-6400MHz/OC), 1 x PCIe 5.0 x16, 4 x M.2 Gen4/ x4, Wi-Fi 6E

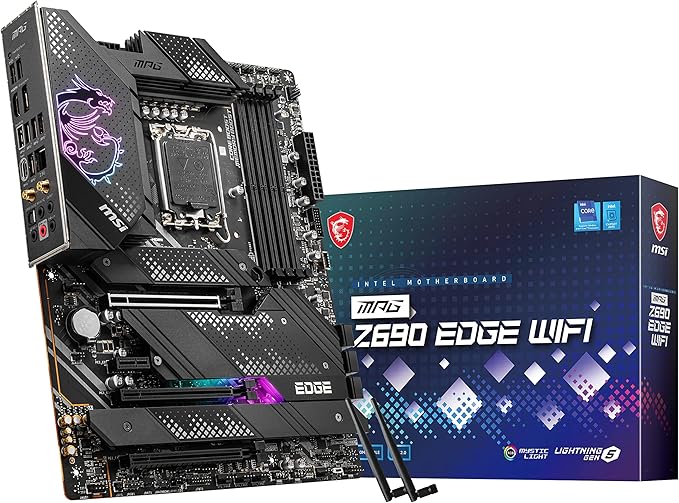

MSI MPG Z690 EDGE WIFI Motherboard ATX - Supports Intel 12th Gen Core Processors, LGA 1700 - Mystic Light, Memory Boost (DDR5-6400MHz/OC), 1 x PCIe 5.0 x16, 4 x M.2 Gen4/ x4, Wi-Fi 6E
RRP:
Your Price:
£361.19
(You save £100.00)
SKU:
MSICMPZ69EDW1
Shipping:
Free Shipping
Product Description
Product information
Additional Information
| ASIN | B09HK5YSW7 |
|---|
About this item
- ROBUST VRM, 12TH GEN CORE READY - The MPG Z690 EDGE WIFI employs a direct 16+1+1 phase VRM platform with 75A Smart Power Stage for the Intel Z690 chipset (LGA 1700, 12th Gen Core ready); Core Boost architecture supports multi-core overclocking
- STYLISH COOLING - VRM cooling features 7W/mK MOSFET thermal pads with extra choke pads and a bilateral heat-pipe to 2 heavy-plated MOS heatsinks; Includes an enlarged chipset heatsink, M.2 Shield Frozr & a 6-layer server-grade PCB; Mystic Light ready
- DDR5 MEMORY, PCI-E 5.0 x16 SLOT - 4 x DDR5 DIMM SMT slots with Memory Boost isolated circuitry for overclocking (1DPC 1R, 6400+ MHz); A PCIe 5.0 x16 SMT slot (128GB/s) supports elite graphics cards (2 x PCIe 3.0 x16 slots, AMD CrossFire supported)
- QUADRUPLE M.2 GEN4 CONNECTORS - Premium storage options consist of 4 x M.2 Gen4 x4 64Gbps slots (Intel Optane supported) with Shield Frozr to prevent SSD thermal throttling
- WI-FI 6E CONNECTIVITY - Network hardware includes Intel Wi-Fi 6E with Bluetooth 5.2 & Intel I225V 2.5Gbps LAN; Rear ports include USB 3.2 Gen 2x2 Type-C (20Gbps), HDMI 2.1 & DisplayPort 1.4, and 7.1 HD Audio with Audio Boost 5 (supports S/PDIF output)
| Brand | MSI |
| CPU socket | LGA 1700 |
| Compatible devices | Personal Computer |
| RAM memory technology | DDR |
| Compatible processors | Core i7-12700K / KF, Intel 12th Gen, Intel Z690, LGA1700, Intel Alder Lake, Core i9-12900K / KF, Core i5-12600K / KFCore i7-12700K / KF, Intel 12th Gen, Intel Z690, LGA1700, Intel Alder Lake, Core i9-12900K / KF, Core i5-12600K / KF |
| Chipset type | Intel Z690 |
| Memory clock speed | 6400 MHz |
| Platform | Windows 10 |
| Model name | MPG Z690 EDGE WIFI |
| CPU model | Intel Core i7 |
