| Brand | MSI |
|---|---|
| Product Dimensions | 24.4 x 24.4 x 2 cm; 1 kg |
| Item model number | 7E13-001R |
| Manufacturer | MSI |
| Series | MAG B760M MORTAR WIFI II |
| Form Factor | Micro ATX |
| Processor Type | Others |
| Processor Socket | LGA 1700 |
| Memory Technology | DDR5 |
| Computer Memory Type | DIMM |
| Maximum Memory Supported | 128 GB |
| Memory Clock Speed | 7800 MHz |
| Graphics Card Interface | PCI Express |
| Connectivity Type | Wi-Fi |
| Wireless Type | Bluetooth |
| Number of HDMI Ports | 1 |
| Number of Ethernet Ports | 1 |
| Are Batteries Included | Yes |
| Lithium Battery Energy Content | 225 Milliampere Hour (mAh) |
| Lithium Battery Packaging | Batteries contained in equipment |
| Lithium Battery Weight | 2.9 g |
| Number of Lithium Metal Cells | 1 |
| Item Weight | 1 kg |
| Guaranteed software updates until | unknown |
Loading... Please wait...Categories
New Products
-
£3,399.00
-
£2,899.00
-
£2,899.00
-
£2,899.00
-
£799.99
Our Newsletter
- Home
- MSI Motherboards UK
- MSI MAG B760M MORTAR WIFI II Motherboard, mATX - Supports Intel 12th & 13th Gen Core Processors, LGA 1700 - DDR5 Memory Boost 7800+MHz/OC, 1x PCIe 5.0 x16, 3 x M.2 Gen4, 2.5G LAN, Wi-Fi 6E

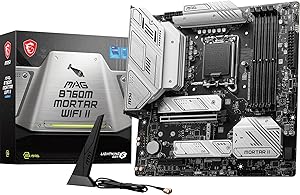

MSI MAG B760M MORTAR WIFI II Motherboard, mATX - Supports Intel 12th & 13th Gen Core Processors, LGA 1700 - DDR5 Memory Boost 7800+MHz/OC, 1x PCIe 5.0 x16, 3 x M.2 Gen4, 2.5G LAN, Wi-Fi 6E
RRP:
Your Price:
£112.27
(You save £40.00)
SKU:
7E13-001R
Shipping:
Free Shipping
Product Description
Product information
Additional Information
| ASIN | B0CGZXXPGD |
|---|
About this item
- 12TH & 13TH GEN CORE - The MAG B760M MORTAR WIFI II (mATX) employs a 12 Duet Rail Power System (75A, DrMOS) VRM for the Intel B760 chipset (LGA 1700, 12th & 13th Gen Core); The VRM features MSI Core Boost technology for improved stability & performance
- INTEGRATED COOLING - VRM cooling features 7W/mK MOSFET thermal pads and an extended heatsink; Includes chipset heatsink, M.2 Shield Frozr, a dedicated pump-fan cooling header & 6-layer server-grade PCB with 2 oz. thickened copper
- DDR5 MEMORY, PCIe 5.0 x16 SLOT - 4 x DDR5 DIMM slots with Memory Boost isolated circuitry for overclocking (1DPC 1R, 7800+ MHz); 1 x PCIe 5.0 x16 slots (128GB/s) supports graphics cards, PCIe x16 slot includes Steel Armor
- TRIPLE M.2 CONNECTORS - Storage options include 3 x M.2 Gen4 x4 64Gbps slots (2 with M.2 Shield Frozr) to prevent thermal throttling during hyper-fast SSD access
- WI-FI 6E CONNECTIVITY - Network hardware includes an Intel Wi-Fi 6E module with Bluetooth 5.3 & 2.5Gbps LAN; Rear ports include USB 3.2 Gen 2x2 Type-C (20Gbps), HDMI 2.1, DisplayPort 1.4, and 7.1 HD Audio with Audio Boost (supports S/PDIF output)
| Brand | MSI |
| CPU socket | LGA 1700 |
| Compatible devices | Personal Computer |
| RAM memory technology | DDR5 |
| Compatible processors | Intel Core processors of the 12th, 13th and 14th generation |
| Chipset type | Intel B760 |
| Memory clock speed | 7800 MHz |
| Platform | Not Machine Specific |
| Model name | MAG B760M MORTAR WIFI II |
| CPU model | Others |
