Product Description

6-Core CPU Support / 6 USB 3.0 / 6 SATA3

Gulftown 6-Core CPU Ready
Supports the Core i7 980X 6-Core CPU

6 x USB 3.0 - World's First Motherboard supporting Front USB 3.0
Delivering data transfer rates up to 10X faster than USB 2.0 with optimized power efficiency. USB 3.0 technology advances the data transfer rate up to 5Gb/s. ASRock provides 4 x USB3.0 ports onboard allows you to have a stunning data transfer experience.

6 x SATA3 - Enjoy 6Gb/s high transer speed now!
Maximum your harddisk performance with SATA3.0. SATA3 technology enables the incredible data transfer rate up to 6 Gb/s speed which is 2X faster speed over SATA2.

Heatpipe Design

Heatpipe design for CPU power Mosfet.

Supports ATI CrossFireX and Quad CrossFireX / Supports NVIDIA SLI and Quad SLI

CrossFireX and SLI are multi-GPU solution. The technology allows a pair of graphics cards to be used in a single computer to improve graphics performance.

ASRock AIWI

ASRock AIWI - Turn Your iPhone Into Game Joystick
Playing Games By Holding Your iPhone or iPod touch

Using AIWI to connect your apple devices to ASRock system, and you can interact with the PC games with delicate touches and body motion while getting responsive shakes and vibrations that correspond from the game stores.
Otras características:
ACPI version: 1.1
ATX Power connector (24-pin): Yes
Audio output channels: 7.1
Audio system: ALC892
BIOS memory size: 8 MB
BIOS type: AMI
CD/AUX audio in: Yes
CPU fan connector: Yes
Certification: - FCC, CE, WHQL\n- ErP/EuP Ready
Compatible operating systems: Windows XP, Vista, 7
Depth: 24.4 cm
Drivers included: Yes
Ethernet LAN (RJ-45) ports: 1
Firewire (IEEE 1394) ports: 1
Floppy disk drive connector: Yes
LAN controller: Realtek RTL8111E
Maximum internal memory: 24 GB
Microphone in: Yes
Motherboard form factor: ATX
Networking features: Gigabit
Non-ECC: Yes
Number of COM connectors: 1
Number of IEEE1394 connectors: 1
Number of Parallel ATA connectors: 1
Number of SATA connectors: 12
Number of memory slots: 6
On-board graphics adapter: No
PCI Express x1 slots: 2
PCI Express x16 slots: 3
PCI slots: 2
PS/2 ports quantity: 2
Power fan connector: Yes
Processor socket: Socket B (LGA 1366)
S/PDIF out port: Yes
Supported memory clock speeds: 800,1066,1333,1600,1866 MHz
USB 2.0 connectors: 1
USB 2.0 ports quantity: 4
USB 3.0 (3.1 Gen 1) Type-A ports quantity: 4
Wake-on-LAN ready: Yes
Width: 30.5 cm
eSATA ports quantity: 1


Note: Use one single memory module to start the motherboard. Once it is running, refresh its BIOS, after this you can add memory modules.

Manufacturer's Description

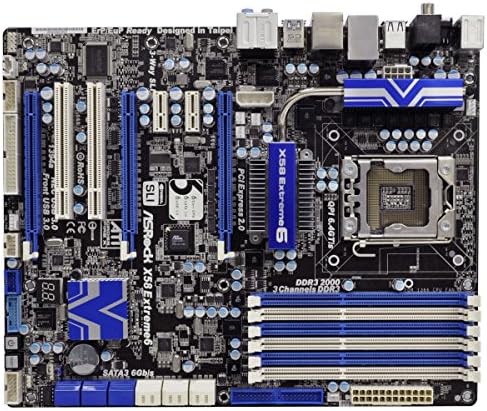

The X58 Extreme6 is the World's First Motherboard supporting Front USB 3.0 Delivering data transfer rates up to 10X faster than USB 2.0 with optimized power efficiency. USB 3.0 technology advances the data transfer rate up to 5Gb/s. ASRock provides 4 x USB3.0 ports onboard allows you to have a stunning data transfer experience. With 6 x SATA3 you can enjoy 6Gb/s high transer speed now! Maximum your harddisk performance with SATA3.0. SATA3 technology enables the incredible data transfer rate up to 6 Gb/s speed which is 2X faster speed over SATA2.

The THX TruStudio PRO solution ensures you the premium audio quality, effects and features for PC systems equipped with onboard audio. For instance, the TruStudio Surround technology expands your stereo content into surround sound; the TruStudio Crystalizer technology restores the compressed sound source and can let you hear every detail in riveting surround sound. Combined with the THX TruStudio PRO and the ASRock high performance HTPC system, you will be assured to enjoy a rich variety of PRO gramming and be entertained by a better way.

Gulftown 6-Core CPU Ready
Supports the Core i7 980X 6-Core CPU
The X58 Extreme6 is the World's First Motherboard supporting Front USB 3.0, offering 6 ports.
Delivering data transfer rates up to 10X faster than USB 2.0 with optimized power efficiency. USB 3.0 technology advances the data transfer rate up to 5Gb/s. ASRock provides 4 x USB3.0 ports onboard allows you to have a stunning data transfer experience.

Enjoy 6Gb/s high transer speed now.Maximum your harddisk performance with SATA3.0. SATA3 technology enables the incredible data transfer rate up to 6 Gb/s speed which is 2X faster speed over SATA2.

The X58 Extreme6 also supports CrossFireX™ and SLI™ technology, the multi-GPU solution. The technology allows a pair of graphics cards to be used in a single computer to improve graphics performance.
